Heartbeat Sensor

What is it?

The Heartbeat Sensor is a robust, configurable system designed to continuously monitor upstream systems for new data. It enhances the existing sensor infrastructure by addressing key limitations and providing significant improvements:

Previous Sensor Architecture Limitations:

• Required individual sensor configurations for each data source.
• Limited scalability when monitoring multiple upstream systems.
• Manual job triggering and dependency management.
• No centralized control or monitoring of sensor status.
• Difficult to manage complex multi-source dependencies.

Heartbeat Sensor Enhancements:

• Centralized Management: Single control table to manage all sensor sources and their dependencies.
• Automated Job Orchestration: Automatically triggers downstream Databricks jobs when new data is detected.
• Multi-Source Support: Handles diverse source types (SAP, Kafka, Delta Tables, Manual Uploads, Trigger Files) in one unified system.
• Dependency Management: Built-in hard/soft dependency validation before triggering jobs.
• Scalable Architecture: Efficiently processes multiple sensors in parallel.
• Status Tracking: Comprehensive lifecycle tracking from detection to job completion.

This provides a centralized, efficient, and automated mechanism to detect and trigger downstream workflows with minimal user intervention.

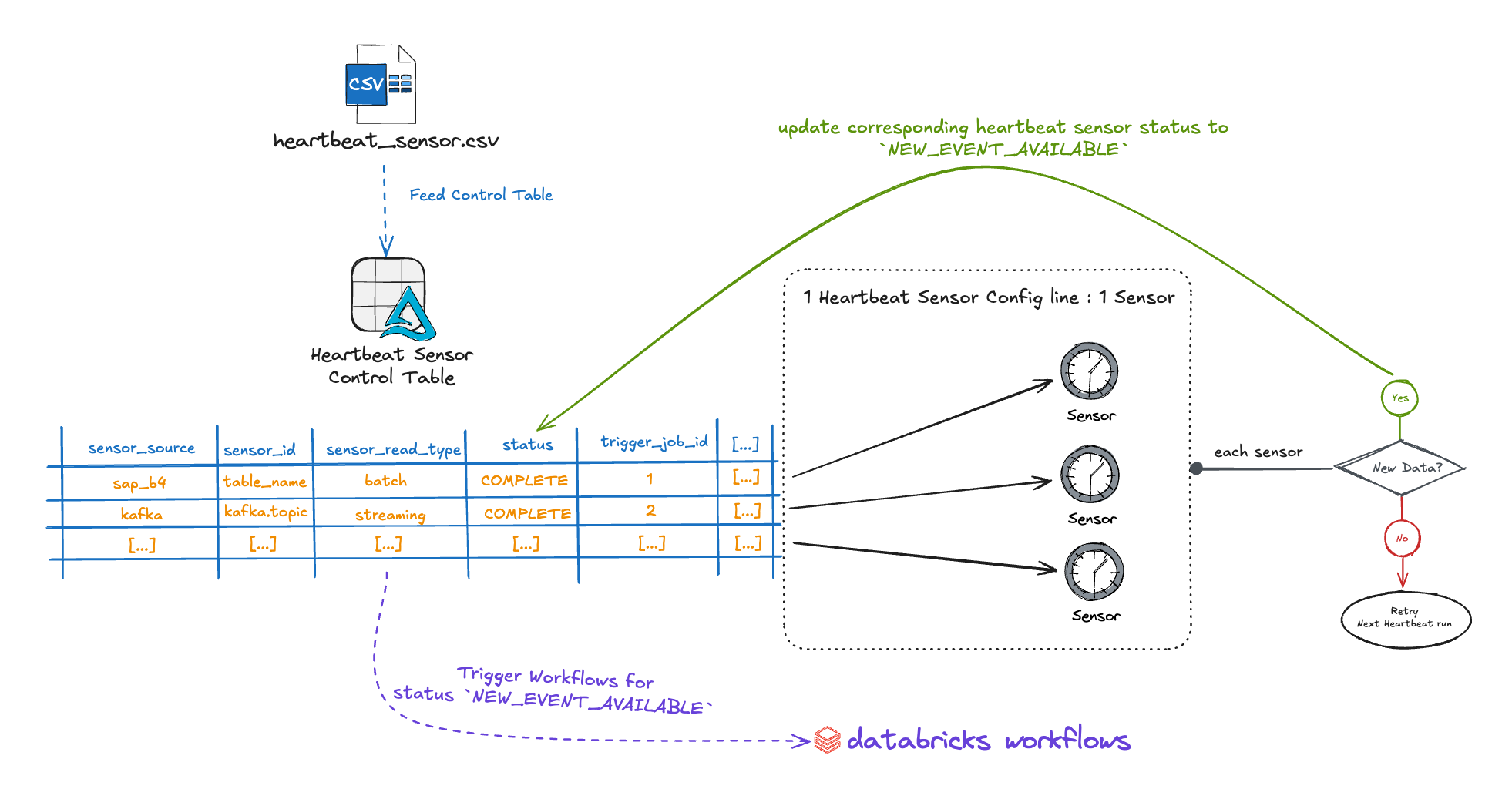

How Does the Heartbeat Sensor Work?

The Heartbeat Sensor operates on a pull-based approach using a single-node cluster that continuously monitors upstream systems. Here's how the system works:

Core Architecture Components

1. Centralized Control Table

• Tracks and manages all data sources and their configurations.
• Dynamically populated by the Heartbeat Data Feeder Job.
• Provides structured monitoring across various upstream systems.

2. Persistent Heartbeat Job

• Runs continuously or on a user-defined schedule.
• Supports both real-time and batch-style data monitoring.
• Efficiently processes multiple sensors in parallel.

3. Sensor Integration Framework

• Leverages existing sensor mechanisms for event detection.
• Creates appropriate Sensor ACONs based on source types.
• Returns NEW_EVENT_AVAILABLE status when new data is detected.

4. Automated Job Orchestration

• Triggers Databricks jobs via Job Run API when conditions are met.
• Validates dependencies before job execution.
• Maintains comprehensive audit trail of all operations.

Operational Flow

1. Continuous Monitoring: The heartbeat cluster continuously polls configured sensor sources.
2. Event Detection: Checks each source for NEW_EVENT_AVAILABLE status.
3. Dependency Validation: Evaluates hard/soft dependencies before triggering jobs.
4. Automatic Triggering: Launches Databricks jobs when all conditions are satisfied.
5. Status Management: Updates control table throughout the entire lifecycle.

Pull-Based Architecture

The system is designed for a "pull" approach, same as the Sensor solution. Downstream data product sensor clusters actively check for new events from the upstream. Upstream sensor clusters do not require write permissions to the downstream data product system. Just read access is required for upstream from downstream system.

Control Table Schema

The Heartbeat Sensor Control Table is the central component that manages all sensor sources and their configurations. Below is the complete schema with detailed descriptions:

Column name	Data Type	Description	Produced/Maintained by
sensor_source	STRING	Upstream source system sap_b4 - SAP 4HANA sap_bw SAP BW delta_table lmu_delta_table - Lakehouse Manual Upload kafka trigger_file	User/Developer
sensor_id	STRING	Unique Upstream id or upstream reference. sap_bw or sap_b4 source: SAP Chain Id, example: SAP_CHAIN_ID_SAP_TABLE delta_table source: Delta table name along with database name, examples: my_database_1.my_table; my_database_2.my_table_2 lmu_delta_table source: Lakehouse Manual Upload Delta table name along with database name, examples: my_database.my_lmu_table kafka source: Kafka Topic name starting with prefix and then the topic name, example: data_product_name: my_product.my.topic. trigger_file source: Asset name/folder name under which trigger file will be kept, example: my_trigger	User/Developer
sensor_read_type	STRING	Sensor read type to fetch new event - can be batch or streaming.	User/Developer
asset_description	STRING	Description of Upstream source (It can be upstream name).	User/Developer
upstream_key	STRING	upstream key (an attribute name from the upstream so that new data can be detected automatically), example: load_date. This is useful for sensors that do not rely on Spark streaming checkpoints, like the JDBC sensor, as it stores the name of a field in the JDBC upstream that contains the values that will allow us to identify new data (e.g., a timestamp in the upstream that tells us when the record was loaded into the database). Note: This attribute will be used in the preprocess_query, example: SELECT * FROM sensor_new_data WHERE ?upstream_key >= current_date() - 7 will be rendered to SELECT * FROM sensor_new_data WHERE load_date >= current_date() - 7	User/Developer
preprocess_query	STRING	Query to filter data returned by the upstream. Note: This parameter is only needed when the upstream data have to be filtered, in this case a custom query should be created with the source table as sensor_new_data. Example: SELECT * FROM sensor_new_data WHERE load_date >= current_date() - 7	User/Developer
latest_event_fetched_timestamp	TIMESTAMP	Latest event fetched timestamp for upstream source. It will be updated each time as soon as NEW EVENT is available.	lakehouse-engine
trigger_job_id	STRING	Databricks Job Id of downstream application. Based on this, Job will get triggered by Heartbeat once new event is available.	User/Developer
trigger_job_name	STRING	Databricks Job Name.	User/Developer
status	STRING	Status of the orchestration. NEW_EVENT_AVAILABLE once new event is found. IN PROGRESS - When job gets triggered COMPLETED - once Job completed successfully	lakehouse-engine
status_change_timestamp	STRING	string containing the datetime when the status has changed.	lakehouse-engine
job_start_timestamp	TIMESTAMP	Start timestamp of downstream Job. It will get updated as soon as Job went into IN_PROGRESS job_status.	lakehouse-engine
job_end_timestamp	TIMESTAMP	End timestamp of downstream Job. It will get updated as soon as Job went into COMPLETED job_status.	lakehouse-engine
job_state	STRING	Current status of Job in Control table. PAUSED or UNPAUSED. If PAUSED, Sensor will not look for NEW EVENTS or Trigger the dependent job.	User/Developer
dependency_flag	STRING	TRUE - For Hard dependency FALSE - For SOFT dependency All dependent Job needs to complete successfully for HARD dependency. For SOFT → FALSE marked job will be ignored. Default - must be TRUE in case of no dependency.	User/Developer

Control Table Reference Records

The following table shows example records that demonstrate how different types of sensor sources are configured in the Heartbeat Sensor Control Table. These are sample entries that illustrate the structure and typical values for each column across various sensor source types (Kafka, Lakehouse Manual Upload Delta Table, SAP B4, Delta Table, and Trigger File).

Purpose of these examples:

• Show real-world configuration patterns for different sensor sources.
• Demonstrate how different statuses (NEW_EVENT_AVAILABLE, IN_PROGRESS, null) appear in the table.
• Illustrate the relationship between sensor sources and their corresponding Databricks jobs.
• Provide reference values for fields like sensor_id, trigger_job_id, and status timestamps.

Note

These are illustrative examples - your actual table will contain records specific to your data sources and job configurations.

sensor_source	sensor_id	sensor_read_type	asset_description	upstream_key	preprocess_query	latest_event_fetched_timestamp	trigger_job_id	trigger_job_name	status	status_change_timestamp	job_start_timestamp	job_end_timestamp	job_state	dependancy_flag
kafka	my_product: my.topic	streaming	My product Kafka Topic	null	null	2025-04-23T21:40:23.768Z	111111111	my-product-kafka_consumer_job	IN_PROGRESS	2025-04-23T21:40:36.88Z	2025-04-23T21:40:36.88Z	null	UNPAUSED	TRUE
lmu_delta_table	my_database.my_lmu_table	batch	My Lakehouse Manual Upload Delta Table	date	null	2025-04-23T21:46:07.495Z	222222222	my-product-lmu_table_consumer_job	IN_PROGRESS	2025-04-23T21:46:19.4Z	2025-04-23T21:46:19.4Z	null	UNPAUSED	TRUE
sap_b4	SAP_BW_CHAIN_ID_SAP_TABLE	batch	My SAP BW Chain Process	LOAD_DATE	null	2025-04-23T21:35:10.643Z	333333333	my-product-sap_bw_consumer_job	IN_PROGRESS	2025-04-23T21:35:29.248Z	2025-04-23T21:35:29.248Z	null	UNPAUSED	TRUE
delta_table	my_database_1.my_table	streaming	My Delta Table from My Database 1	null	null	2025-04-23T22:11:56.384Z	444444444	my-product-delta_and_sap_b4_consumer_job	NEW_EVENT_AVAILABLE	2025-04-23T22:11:56.384Z	null	null	UNPAUSED	TRUE
sap_b4	SAP_4HANA_CHAIN_ID_SAP_TABLE	batch	My SAP 4HANA Chain Process	LOAD_DATE	null	null	444444444	my-product-delta_and_sap_b4_consumer_job	null	null	null	null	UNPAUSED	TRUE
trigger_file	my_trigger	streaming	My Trigger File	null	null	2025-04-23T22:07:28.668Z	555555555	my-product-trigger_file_consumer_job	IN_PROGRESS	2025-04-23T22:07:39.865Z	2025-04-23T22:07:39.865Z	null	UNPAUSED	TRUE

How to Implement the Heartbeat Sensor

This step-by-step guide aims to help you through setting up, configuring, and operating the Heartbeat Sensor system from initial setup to ongoing monitoring and troubleshooting.

Phase 1: Initial Setup and Configuration

Step 1: Define Your Data Source Configurations

Create a CSV file containing your data source configurations with the following required columns:

• sensor_source: Type of sensor source.
• sensor_id: Unique upstream identifier or reference.
• sensor_read_type: How to read the sensor (batch or streaming).
• asset_description: Description of the upstream source.
• upstream_key: Attribute name for detecting new data automatically.
• preprocess_query: Optional query to filter upstream data.
• trigger_job_id: Databricks Job ID to trigger when new data is available.
• trigger_job_name: Databricks Job Name.
• job_state: Job control state (UNPAUSED or PAUSED).
• dependency_flag: Dependency type (TRUE for hard, FALSE for soft).

Example CSV Configuration:

sensor_source,sensor_id,sensor_read_type,asset_description,upstream_key,preprocess_query,trigger_job_id,trigger_job_name,job_state,dependency_flag
kafka,"my_product: my.topic",streaming,"My product Kafka Topic",,,"111111111","my-product-kafka_consumer_job",UNPAUSED,TRUE
delta_table,"my_database_1.my_table",streaming,"My Delta Table from My Database 1",,,"444444444","my-product-delta_and_sap_b4_consumer_job",UNPAUSED,TRUE
sap_b4,"SAP_4HANA_CHAIN_ID_SAP_TABLE",batch,"My SAP 4HANA Chain Process",LOAD_DATE,,"444444444","my-product-delta_and_sap_b4_consumer_job",UNPAUSED,TRUE

Step 2: Populate the Heartbeat Control Table

Use the Heartbeat Sensor Control Table Data Feeder to:

• Read your CSV configuration file.
• Validate the configuration entries.
• Ingest the data into the Heartbeat Control Table.
• Establish the foundation for monitoring and orchestration.

Phase 2: Heartbeat Sensor Operation Workflow

Step 3: Continuous Monitoring and Event Detection

The Heartbeat sensor cluster (running on a single node) performs the following operations:

3.1 Control Table Scanning

• Scans the Heartbeat Control Table for eligible records.
• Filters records based on:
  • Supported sensor sources: Delta Table, Kafka, SAP BW/4HANA, Lakehouse Manual Upload, Trigger file.
  • Job state: job_state = 'UNPAUSED'.
  • Status conditions: status IS NULL or status = 'COMPLETED'.

Orchestration job recommendation

We recommend running multiple tasks for each sensor source type in the same Heartbeat Sensor Orchestrator and just create specific source related jobs when it's really needed, example: real time processing jobs or some complex jobs that need to be triggered as soon as the trigger condition is satisfied (all hard dependencies has NEW_EVENT_AVAILABLE).

First-Time Execution

For new sensor sources and IDs, the initial status will be NULL. This ensures that failed or paused jobs are not automatically triggered.

3.2 Source-Specific Event Detection

For each eligible record, the Heartbeat system:

• Creates the appropriate Sensor ACON (configuration) based on the sensor_source type.
• Passes the configuration to the respective Sensor Algorithm.
• The sensor algorithm checks for NEW_EVENT_AVAILABLE status for the specific sensor_id.

Supported Source Types and Their Configuration:

• Delta Table Sources: Monitor delta tables for new data.
• Kafka Sources: Monitor Kafka topics for new messages.
• Manual Table Sources: Monitor manually uploaded delta tables.
• SAP BW/B4 Sources: Monitor SAP systems for new process chains.
• Trigger File Sources: Monitor file systems for trigger files.

Step 4: Event Processing and Status Updates

4.1 New Event Detection

When a sensor detects new data:

• Updates the traditional sensor table (lakehouse_engine_sensor) with detection details.
• Returns NEW_EVENT_AVAILABLE status to the Heartbeat module.

4.2 Heartbeat Control Table Updates

The Heartbeat system updates the control table with:

• status → NEW_EVENT_AVAILABLE.
• status_change_timestamp → current timestamp.
• latest_event_fetched_timestamp → timestamp when event detection started.

Step 5: Dependency Validation and Job Triggering

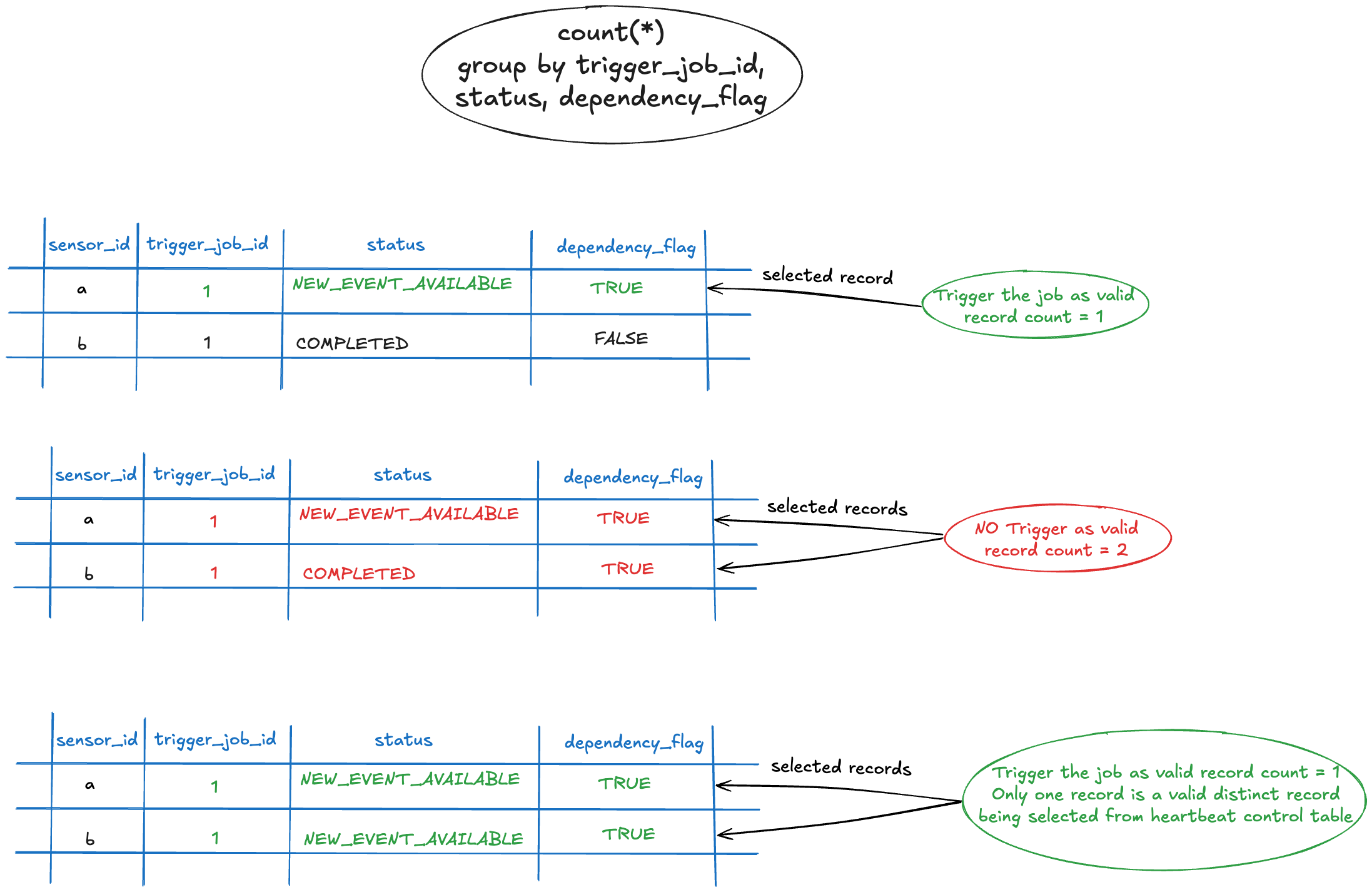

5.1 Dependency Evaluation Process

Before triggering any jobs, the system evaluates dependencies:

1. Filter Eligible Records: Select records with status = 'NEW_EVENT_AVAILABLE'.
2. Group by Job ID: Group records by trigger_job_id to identify job dependencies.
3. Evaluate Dependency Flags:
   • TRUE (Hard Dependency): Job must have NEW_EVENT_AVAILABLE status.
   • FALSE (Soft Dependency): Job status is optional and doesn't block triggering.
4. Aggregate and Validate: Ensure all hard dependencies are satisfied before triggering.

5.2 Triggering Logic Examples

Consider Job 3 that depends on Job 1 and Job 2:

• Scenario A: Job 1 (HARD) + Job 2 (HARD) → Both must have NEW_EVENT_AVAILABLE.
• Scenario B: Job 1 (HARD) + Job 2 (SOFT) → Only Job 1 needs NEW_EVENT_AVAILABLE.

5.3 Job Triggering via Databricks API

For jobs that pass dependency validation:

• Trigger the corresponding trigger_job_id via Databricks Job Run API.
• Immediately update the control table:
  • status → IN_PROGRESS.
  • job_start_timestamp → current timestamp.
  • status_change_timestamp → current timestamp.

Phase 3: Job Execution and Completion

Step 6: Databricks Job Execution

Each triggered Databricks job must include:

• Your primary ETL/processing tasks.
• Final Task: Update Heartbeat Sensor Status task.

Step 7: Job Completion Handling

Upon successful job completion, the update status task:

• Sets status → COMPLETED.
• Updates status_change_timestamp → current timestamp.
• Sets job_end_timestamp → job completion timestamp.

Phase 4: Error Handling and Recovery

Step 8: Job Failure Recovery Process

If a Databricks job fails, follow this recovery process:

1. Identify the Issue: Analyze job logs and error messages.
2. Fix the Problem: Address the underlying cause of the failure.
3. Manual Recovery: Execute at least one successful manual run of the job.
4. Automatic Resumption: Heartbeat will resume monitoring and triggering after successful completion.

Important Recovery Note

The Heartbeat sensor will not resume checking failed jobs for new events until at least one successful completion occurs. This prevents repeated triggering of failing jobs.

Step 9: Monitoring and Maintenance

9.1 Regular Monitoring Tasks

• Monitor the Heartbeat Control Table for job statuses.
• Check for jobs stuck in IN_PROGRESS status.
• Verify dependency relationships are working correctly.
• Review latest_event_fetched_timestamp for regular updates.

9.2 Control and Management

• Pause Jobs: Set job_state to PAUSED to temporarily stop monitoring.
• Resume Jobs: Set job_state to UNPAUSED to resume monitoring.
• Modify Dependencies: Update dependency_flag to change dependency relationships.

Phase 5: Advanced Configuration and Optimization

Step 10: Advanced Configuration Options

10.1 Preprocess Queries

Use preprocess_query to filter upstream data:

-- Example: Filter only recent records
SELECT * FROM sensor_new_data WHERE load_date >= current_date() - 7

10.2 Parallel Processing

The Heartbeat sensor automatically handles parallel processing of multiple sources, improving efficiency and scalability.

10.3 Pull-Based Architecture Benefits

• Upstream systems only need read access to downstream systems.
• No write permissions required from upstream to downstream.
• Improved security and access control.

Troubleshooting Common Issues

Issue	Symptoms	Solution
Jobs not triggering	Status remains NEW_EVENT_AVAILABLE	Check dependency flags and ensure all hard dependencies are met.
Jobs stuck in IN_PROGRESS	No completion status updates	Verify that jobs include the update status task as the final step.
Failed job recovery	Jobs not resuming after fixes	Manually run the job successfully at least once.
Missing events	latest_event_fetched_timestamp not updating	Check sensor source connectivity and configuration.

This workflow ensures reliable, automated data pipeline orchestration with robust error handling and dependency management.

Note

Also have a look at the Sensor documentation to have a better understanding of the underlying sensor mechanisms that power the Heartbeat Sensor system.
